PLC Two Stations Circular Saw Switch And Lower Guard Endurance Test Equipment
Products Description
EN 60745 Two Stations Circular Saw Switch And Lower Guard Endurance Test Equipment
Product Information:
This test device for circular saw switch and lower guard conforms to EN 60745-2-5: 2010 Annex M21.18, Annex M21.18.301, Annex M21.203, Annex M21.301, figure M.301, IEC60745-2-5:2003 Annex BB.20.102, EN 60745-2-5:2010 clause 17.101 and clause 19.102.3.
It is used to test the circular saw switch performance and circular saw lower guard’s durability and recovery time.
Technical Parameters:
One (model: SN2802)
or
two (model: SN2803)
optional
This equipment is composed of two parts, the mechanical system and electrical control system.

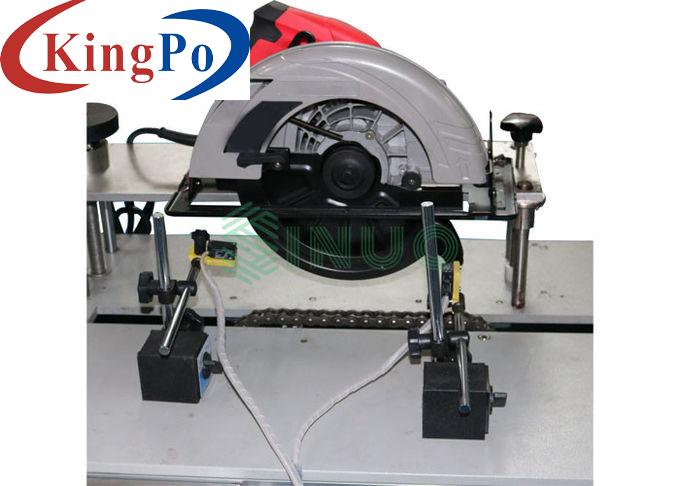

Mechanical system is the table for circular saw. There are a switch and sample socket on the table, operator can push the switch to turn on or off the load power supply to the test sample; different sizes of circular saws can be placed and fixed on the table; on the table, device for locking the switch of the hand-held circular saw in the “on” position; the blade can extend to the bottom of the table through the middle groove; on the table where under the blade, there are a the lower guard putter and two position sensors , which can be drive the lower guard of the circular saw to be opened or closed.
The electrical control system consists of the load power supply, PLC, 7 Inch Touch screen and etc. Can achieve manual operation and automatic operation.
No.:
Serial No.:
Parameter
Remark
1
Input Power
220V/50Hz
2
Control System
PLC, 7-inch touch screen
3
Station
4
Built-in Load
0~250V/5KW voltage regulator, equipped with B socket
5
Test Cycles
0-999999, can be preset
6
Test Speed
≥10 freq/min
7
Guard Recovery Detection Time
0.01-9.99s, can be displayed
Recovery time
8
Circular Saw Switch Locking Device
Lock or release the switch by motor driving
9
Operation Buttons
Stop and Start buttons on the panel for operator easily cut off or turn on the power
