IEC 60884-1 Figure 28 Insulating Sleeves of Plug Pins Abrasion Test Apparatus
Product information:
The plug pins insulating sleeves abrasion test apparatus meets the requirements of IEC 60884-1 2013 clause 24.7 and figure 28, BS1363-1 figure 9. It is used to test the abrasion resistance strength of insulation sleeve of plug pins.
Technical parameters:
Equipment characteristics:

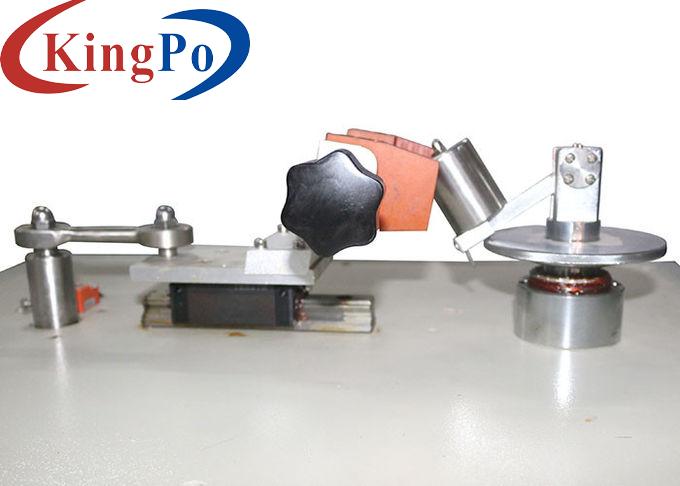

Device consists of a horizontal placement of the beam and the linear movement of the fixture seat, wherein, beam ends with diameter 1mm short steel wire is bent into a U-shaped head (U shape of two vertical fixed on the beam), wire U-shaped bottom is 6mm linear part. Compress the 6mm hemline on the plug insulation sleeve, the motor drives the mounting bolt clamp seat to do reciprocating movement back and forth, conducting the abrasion test to insulation sleeve of plug pins.
Power Supply
AC220V, 50Hz or match the client's site local power supply
Test Stations
Single station (can be customized)
Test Times
1-999999 (can be preset).
Abrasion Rate
30 movements per minute
Load
4N
Stroke
9mm, about 7mm scratch on insulation sleeve
Steel wire
diameter 1mm, effective length 6mm
Conforms to standard
IEC 60884-1 2013 clause 24.7 and figure 28, BS1363-1 figure 9
