SPWM High Frequency Pulse AC Constant Current Source Width Pulse Width Modulation
Products Description
SPWM High Frequency Pulse AC Constant Current Source Width Pulse Width Modulation
Product Information For AC Constant Current Source:
The AC constant current source adopts SPWM high frequency pulse width pulse width modulation, IGBT realizes the output, can modulate the output current and frequency, has a fast response speed, high constant current accuracy, and long-term stable operation. And it can overcome current changes caused by grid voltage fluctuations, loop resistance changes, and product internal resistance changes, without being affected by human factors; small size, high efficiency, reliability and maintenance costs have obvious advantages over traditional voltage regulators; mainly used for testing and application of current thermal effects of specific products, such as circuit breakers, fuses, thermal relays, magnetic starters and other protective switches and various types of transformers where thermal effects testing applied such as rated current, operating current, short-circuit current, etc.
Feature For AC Constant Current Source:
1. Constant current, constant current adjustment range: 0-max. value continuous adjustment.
2. Constant pressure, constant pressure adjustment range: 0- max. value continuous adjustment.
3. Frequency conversion, frequency adjustment range: 47Hz-63Hz adjustable, fixed gears 50Hz, 60Hz, 100Hz, 120Hz.
4. When using constant current and constant voltage, it can be automatically cross-converted to maintain both control and protection characteristics.
5. Provide measurement of root mean square voltage, root mean square current, active power, frequency, etc.
6. Protection mode: over voltage, over current, overload, short circuit, current limit, etc.
7. Input and output are isolated.
Technical Parameters For AC Constant Current Source:
Output Io＜ 10 A: resolution:0 . 001 A;
Output 100＞ Io≥ 10 A: resolution 0 . 01 A；
Mode
CCS1000
Power
500 VA
Working
SPWM (Sine Pulse Width Modulation)
INPUT
Phase
1φ2W+PE single-phase two-wire + ground
Voltage
127 V±10 %
Frequency
47 Hz – 63 Hz
OUTPUT
Phase
1φ2W+PE single-phase two-wire + ground
Frequency
47 ~63 Hz adjustable (fixed gear 50Hz, 60Hz, 100HZ, 120HZ)
Voltage
AC 5V
Current
0-100A

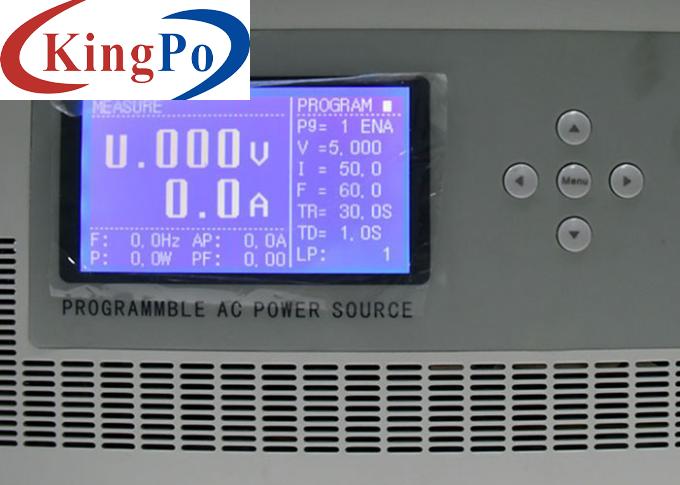

LED Display
Voltage Vrms, current Arms, frequency ,Power Wattage
Linear Regulation
0 . 1 %
Load Regulation
1 %
Harmonic THD
2% (Pure resistive load)
Frequency Regulation
0 . 01 %
Voltage Resolution
0 . 1 V
Frequency Resolution
0 . 01 Hz
Current Resolution
Measurement accuracy
Voltage
0 . 5 % FS+ 5 dgt
Current
0 . 5 % FS+ 5 dgt
Wattage
0 . 5 % FS+ 5 dgt
Frequency
0 . 01 % FS+ 5 dgt
Setting accuracy
Voltage
1 % FS
Current
0 . 1 % FS
I-LIM Set
O-Max Current
Protection
Over Current, Over Temp ,Over Load ,Short Circuit
Cooling
Fan forced cooling
Weight (kg)
15
20
30
35
50
80
80
120
300
Dimensions W×H×D( mm)
430×133×370
Working Environment
0 – 40℃, 20-90%RH
