Products Description

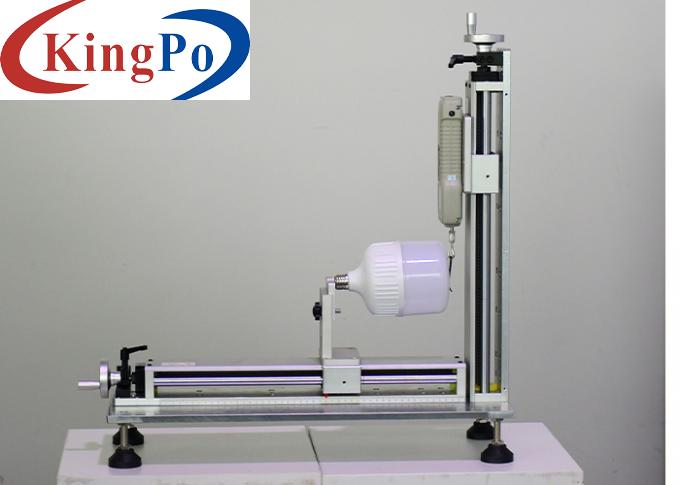

IEC 60598-1 Semi-luminaires Bending Movement Stepless Adjustment Test Apparatus With 100N Force Gauge
Standards & Clauses:
IEC 62560-2015 “Self ballasted LED –lamps for general lighting services by voltage>50V-Safety specifications” clause 6.2, table 2
IEC61199 -2014 “single-capped fluorescent lamps –Safety specifications” clause A2.1
IEC 60598-1:2014 “Luminaries-Part1: General requirements and tests” clause 4.14.2
Samples and Restrictions:
Semi-luminaires intended for connection to Edison screw or bayonet lampholders
Application:
It is used to test the bending moment effect of the semi-luminaires on the lampholders, in order to prevent the damage of the lampholders from being damaged by excessive bending moment.
Test Principle:
Using a push-pull force gauge to connect with a semi-luminaire through a flexible cord, the force of the free bending of the luminaire is measured, and the actual bending moment value is calculated by multiplying the force arm, compared with the standard requirement.
Structure:
Manual testing, simple and convenient
Technical Parameters:
Please refer to following table:
Fluorescent lamp lamphoders axial force test (G5 15N,G13 30N), conforms to IEC60598.1: 2014 clause 4.4.4 i)
Digital display force gauge
Digital display, force range: 0-100N, resolution 0.1N
Measurable length of semi-luminaires
0-400mm
Test requirements
Adjustment method
Stepless adjustment, the screw slider is driven by adjusting handwheel
Extended function
