Toasters Abnormal Operation Test Apparatus PLC Control IEC60335-2-9 Clause 19
Products Description

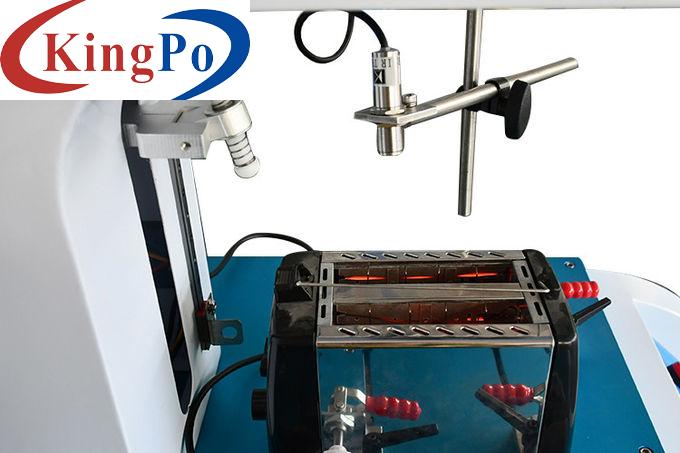

IEC60335-2-9 Toasters Abnormal Operation Test Apparatus Touch Screen Version
Product overview:
This toasters abnormal operation test apparatus meets the requirements of IEC60335-2-9 clause 19.101. Toasters are operated at rated power input and under normal operation, but without bread, for six cycles of operation. The appliance is then allowed to cool to approximately room temperature. This test is carried out 500 times.
This test apparatus adopts advanced PLC control and touch screen display,the test time and test cycles can be preset, the test will be carried on automatically after all parameters are set well, which is easy for operation.
Technical parameters
Power supply
Match client's local power supply requirements
Control method
PLC control
Display & operation method
Touch screen
Test Station
Single
Drive mode
Electrical
Output power
2KW
Interval time
0-999.9s adjustable, can be preset
Cooling time
0-999.9s adjustable, can be preset
Operation cycles
0-9999, can be preset, default 6 cycles
Test Times
0-9999, can be preset, default 500 times
Interval time
The pause time of the manipulator in the upper limit position
