UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station
Price:Customized
StandardPackaging:Plywood
DeliveryPeriod:1Month
PaymentMethod:T/T
SupplyCapacity:20SetsPerMonth
Products Description
UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station
Overview:
This apparatus conforms to UL2054 Clause 22 FIG. 22.1, UL 1642-2009 Clause 20 FIG. 20.1, GB 31241-2014 Article 7.9 FIG. E.2.
Battery Fire Exposure Test Apparatus is an essential test equipment for battery manufacturers and quality inspection departments. This equipment has the characteristics of convenient operation, safety and reliability, and high precision. It is an ideal testing machine for battery combustion and projectile testing.
Technical Parameters:
| 1 | Sample limits |
This test equipment prohibits:
Testing or storage of biological specimens
Test or storage of strong electromagnetic emission source specimens
Testing or storage of radioactive material samples
Testing or storage of samples of highly toxic substances
Test or storage of specimens during testing or storage that may produce such substances or objects
|
|
| 2 | Number of stations | 1 station | |
| 3 | Burner | Bunsen burner, pipe inner diameter 0.375 inch (9.5mm) | |
| 4 | Flame Applicate Time | 99H59M59.9S±0.1s | |
| 5 | Flame Height | 10~75±2mm can be adjustable | |
| 6 | Testing Hole Diameter | 102mm | |
| 7 | Fire Ignition Device | Auto fire ignition | |
| 8 | Schematic diagram of blowtorch and electric fire device |  |
|
| 10 | Testing Bar Diameter | 1/4 inch (6.4mm) ×12 inch (305mm) | |
| 11 | Test Cover Width | 24 inches (610mm) ×12 inch (305mm), octagonal | |
| 12 | Test Cover Height | 12inch (305mm) | |
| 13 | Testing Aluminum Mesh Diameter | 0.010-inch (0.25mm) 16hole×16hole | |
| 14 | Octagonal stainless steel net cover | Distance between each other 2 feet (610mm), Octagonal net cover height1 feet (305mm) | |

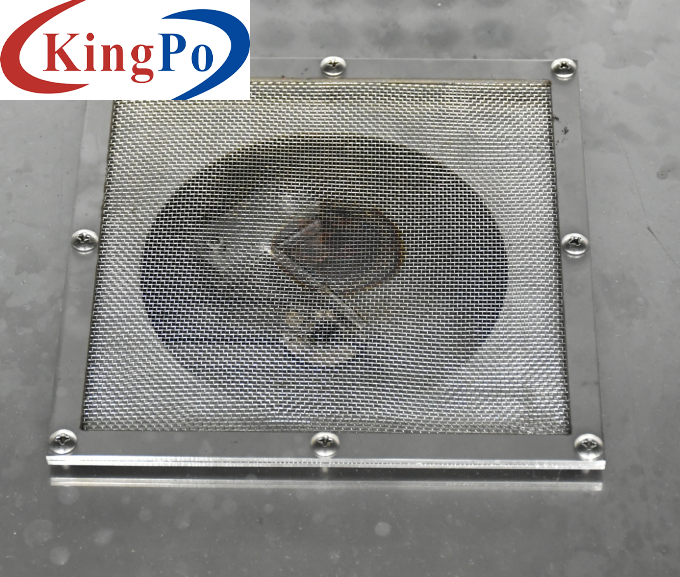

| 15 | Screen | 150×150mm (made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch /0.43mm), Max capacity:5kg | |
| 16 |
Standard drawing of
Eight-sided cover
|
 |
|
| 17 |
Physical picture for
Eight-sided cover
|
 |
|
| 18 | Burning Gas Requirement | High purity liquefied petroleum gas (should be prepared by Customer) | |
| 19 | Control system | PLC, and a remote controller is offered, whole test procedure fully automatic | |
| 20 | Display and Operation Method | Touch Screen | |
| 21 | Video Monitor | Brand | MI |
| Model | MJSXJ09CM | ||
| Size | 115*78*78mm | ||
| Resolution | 1296P(3 megapixel) | ||
| Viewing angle | Horizontal 360° Vertical 108° | ||
| PTZ control | APP control (Horizontal + Vertical) | ||
| Full color night market | Low light full color | ||
| Infrared night vision | Support | ||
| Two-way voice | Support | ||
| Tracking function | Support | ||
| Install method | lay flat /upside down /side mounted | ||
| Wifi channel | 2.4GHz | ||
| Storage | Come with 32G microSD card | ||
| 22 | Inter Size | W800XD700XH700 mm | |
| 23 | Overall Dimension | W1000XD900XH1620 mm | |
| 24 | Observation Window | 430 X 350mm(20mm thickness tempered explosion proof glass), with explosion-proof net | |
| 25 | Inner chamber Material | SUS304 Stainless steel | |
| 25 | Outer Chamber Material | Cold rolled powder painted | |
| 26 | Smoke Extractor | Φ 150mm on back side | |
| 27 | Bottom | Installed with universal wheels | |
| 28 | Pressure Relief Port | Test chamber with pressure relief device, when the pressure in the chamber to set up, self-open the pressure relief hole to release the pressure out of the chamber | |
Features
PLC and touch screen for control and operation.
When there is a smoke alarm, the exhaust will automatically open, and when there is no smoke, it will be closed after a delay.
Unsuccessful ignition alarm and cut off steam source.
Built-in lighting, through external reflection, to ensure the life and safety of lighting, etc.
The HD video camera and visual window can enable operator to clearly observe the changes of the test object in the experiment.
With explosion-proof glass, and equipped with steel mesh, double protection.
Controlled by remote controller, the maximum distance can reach 10 meters.
Test procedures
Place the test cell on a flat plate covered with a cover with a 4-inch diameter hole in the center. Covers are made of wire mesh or 0.017 in (0.43 mm) wire with 20 holes per foot. Place a screen with 8 sides 2 feet (610 mm) wide and 1 foot high (305 mm) on each side around the sample. The wire mesh consists of 0.010" (0.25mm) wire with 16-18 wires per inch. The sample is placed on a wire mesh, covering the hole in the center of the table, and heated until it explodes or is destroyed. The direction of the safety valve is parallel to the asbestos cloth.
Acceptance: The exploding battery does not partially penetrate the screen, and the battery does not partially or fully protrude from the screen.
Tags：batterydischargeanalyzerbatterytestchamberLithiumbatterytester
