UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control
Products Description
UL Water Spray Test Apparatus 5 PSI Water Ingress Testing Equipment for Lamps
Overview:
The testing equipment is used to verify the protective performance of the enclosure for self-ballasted lamps and lamp adapters under UL water spray environment.
The water ingress testing equipment applys spray test to test sample by controlling the water supply pressure and the distance between the nozzle and sample.
Standards compliant:
UL1993 “Self-Ballasted Lamps and Lamp Adapters” clause 24, figure 24.1 and 24.2
Structure:

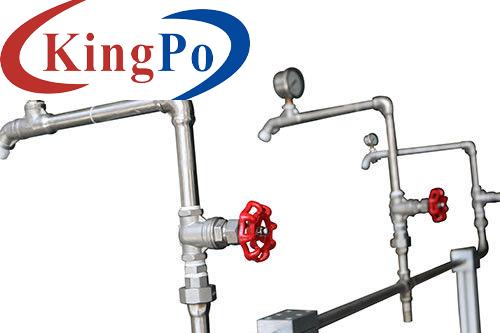

The device consists of a 3 UL spray heads, 3 pressure gauges, 3 control valves and a water supply pipe rack.
Technical parameters:
UL60507-ENGL 1999 figure 38.1 and 38.2
ANSI Z21.10.3-2004
ANSI Z21.58 Figure 10/Figure 11
CSA4.3-2004
UL1598, UL153, UL154B, UL1703, UL8750, UL1741, UL514B, UL1278, UL1571, etc.
Control & Operation
Manual
Spreay Heads
3 pieces (or 4 pieces optional, with one lower nozzle), manufactured according to UL1993figure 24.1
Spray Heads Positions
The positions of spray heads can be adjusted up or down through the water spray pipe rack, the spacing is made according to UL1993 Figure 24.2
Lower Nozzle Angle (Optional)
45° up
Water Pressure
At each head at approximately 34.5Kpa (5 psi), each spray head has a corresponding press gauge, total water flow pressure is 50-150Kpa
Distance between the center Nozzle and the Device
Approximately 1.4m (55 inches)
Rack
Material: high-grade aluminum profile with casters
